GODA® Cloud

7 Affordable and Clean Energy

11 Sustainable Cities and Communities

13 Climate Action

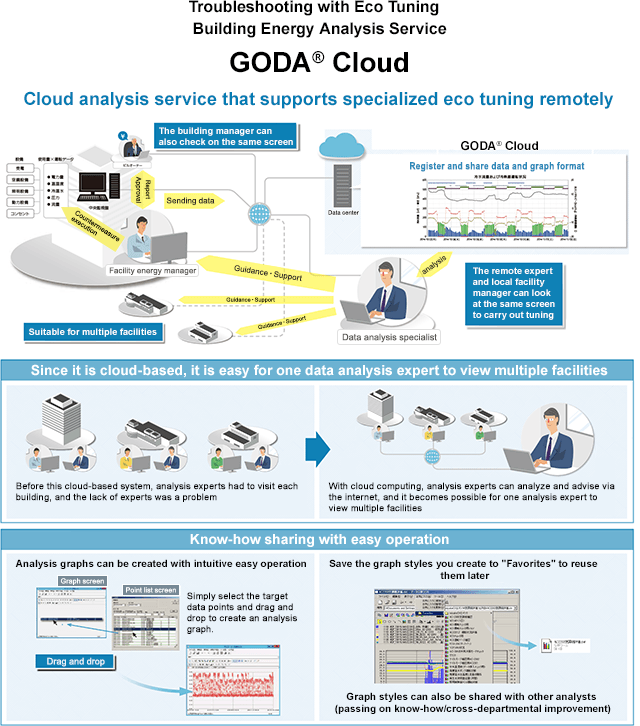

GODA® Cloud is a data collection and analysis tool that captures operation data in the central monitoring equipment of a building, analyzes operation from multiple angles in a short time, and realizes optimum energy-saving operation.

GODA®:Gathering Operation Data And Analysis

Patent No. 4540737

Awards and Certifications

  • 2017 Energy Conservation Grand Prize (Product/Business Model Department)
    Energy Conservation Center Chairman's Award
  • Won the 2017 Good Design Award (Platform Division)
  • Remote support for the Ministry of the Environment's Eco Tuning Business Model Establishment Project
    Adopted as analysis tool

Features

  • Manufacturer-free
    Provide services without depending on central monitoring board manufacturer
  • Task-free
    Automatically send data to the cloud every day using transmission kit
  • Area-free
    Available in any internet-connection environment
    Can be used not only in Japan but also in overseas buildings
  • User-friendly
    Excellent operability, complete with versatile graph formats
    Various functions including air line diagrams are built-in
    Calculations between data can be freely carried out
  • High security: Adopts SSL-VPN

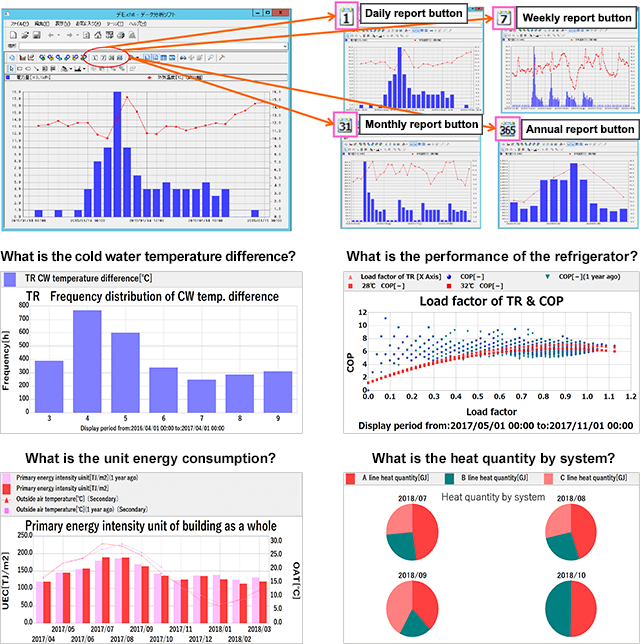

GODA® Cloud usage example

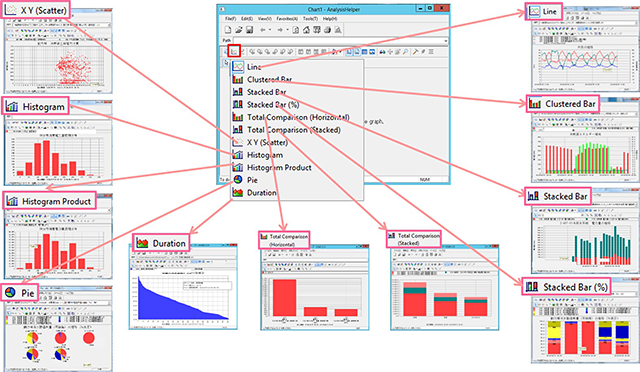

Convenient functions:
I can create many graphs just by pressing one button!

Convenient functions:
I can change the display period just by pressing one button!

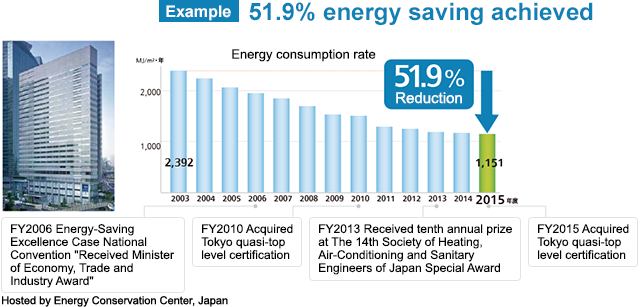

Example

* Investigation by Panasonic Marketing Department

Panasonic Tokyo Shiodome Building has been using energy-saving tuning by fully utilizing this tool since 2003, and has achieved energy-saving of 51.9% (FY 2015) compared to the first year after completion of construction.

In addition, by using this tool, the energy-saving effect has been demonstrated for various facilities under the Ministry of the Environment's "Eco Tuning Business Model Establishment Project."

Usage conditions

GODA® Cloud is an ASP service that uses a cloud server jointly developed by Takasago Thermal Engineering Co., Ltd. and Panasonic Corporation. A service contract is required for use.

Usage fees Initial setting fee 200,000 yen per facility (standard)
Monthly usage fee 20,000 yen per facility (standard)
Service use time (Every day) 6:00 to 24:00
Options Data transmission kit

Notice

  • GODA for PC was discontinued as of the end of June 2017.
