Green Hydrogen Production, Storage, and Utilization System

7 Affordable and Clean Energy

9 Industry, Innovation and Infrastructure

11 Sustainable Cities and Communities

13 Climate Action

We used our expertise in air conditioning system engineering to provide onsite green hydrogen infrastructure powered by renewable energy. We contribute to our customers’ decarbonization and carbon neutrality by producing and storing green hydrogen with no CO2 emissions from production to use and supplying it as a raw material for power generation, fuel, and industry.

Patent No. 5455874, Patent No. 5622544,
Patent No. 6895784, Patent No. 7412481,
Patent No. 7412482,
Unexamined Patent Publication 2021-046602, etc.

Features

  • Our water electrolyzers are the solid polymer (PEM) type, and thus have high load-following capacity and are optimal for producing hydrogen from renewable energy, which can be very inconsistent.
  • The system uses volatile supplies of renewable energy to produce and store hydrogen, which it then uses to balance the supply of electricity with demand.
  • Storing hydrogen involves no energy loss—it can be stored for months and even years, making it an apt energy supply during disasters, power outages, and other emergencies.
  • We provide optimal solutions to meet your needs, including for products manufactured by other companies.

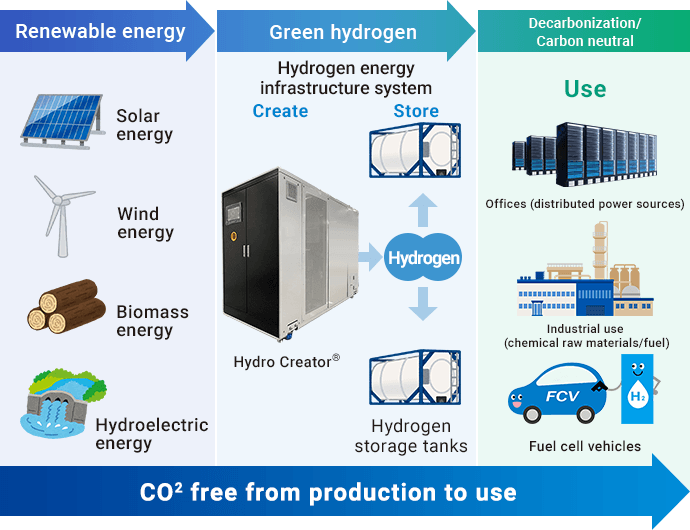

Renewable energy → Green hydrogen → Decarbonization   Completely CO2-free, from production to use

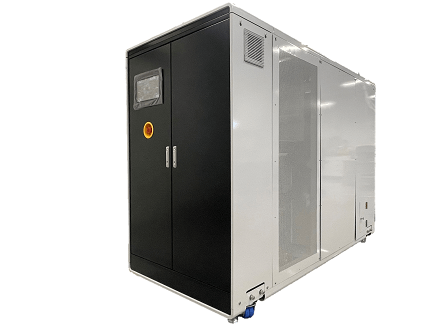

Solid polymer
water electrolyzer
"Hydro Creator®"

A water electrolyzer made by Takasago Thermal Engineering.

Unique approach

  • We developed this water electrolyzer using technology cultivated over many years under our integrated water electrolysis-fuel cell system
  • We developed this water electrolyzer from the perspective of equipment users

Proprietary cell stack

  • We leveraged our knowledge of integrated cell development to develop a high-efficiency cell stack for electrolysis (5–15 points higher than conventional cell stacks)
  • Our proprietary design and manufacturing technology enables us to provide custom-made products tailored to customers’ needs

Proprietary system

  • Our distinct moisture capturing technology contributes to improved system efficiency (10–20 points higher than conventional systems)
  • Our distinct control technology reduces the negative impact of output fluctuations on performance

Basic specifications

Electrolyzer type Solid polymer
Hydrogen production capacity Maximum of
5 Nm2/h
Hydrogen supply pressure 0.9 MPaG
Hydrogen purity At least 99.999%
(converted to atmospheric pressure, dry basis)
Hydrogen dew point -40℃ or lower
Footprint W: 2.6 m, L: 0.9 m, H: 1.5 m

Case study

Microgrid in the Atsuta District of Ishikari, Hokkaido

We installed a microgrid in the Atsuta District of Ishikari, Hokkaido under a project commissioned by the municipal government. The system is a sustainable, low-carbon microgrid with disaster risk reduction features that draws power from renewable energy and renewable hydrogen.

  • The system uses solar power (163 kW) to supply electricity to five public facilities in the Atsuta District of Ishikari
  • The system features storage batteries (50 kW/168 kWh) and a hydrogen system (water electrolyzer and fuel cell) to store energy to maximize the availability of solar power
  • Designed with direct current between photovoltaic generation, storage batteries, and power conditioner to reduce power conversion losses
  • When disasters strike, the system automatically switches to autonomous mode and can supply electricity to designated evacuation centers for at least 72 hours

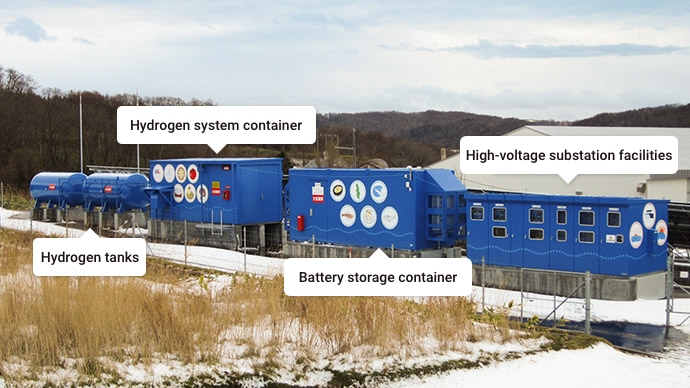

Overview of the microgrid in the Atsuta District of Ishikari

Hydrogen tanks   Hydrogen system container   Storage battery container   High-voltage substation

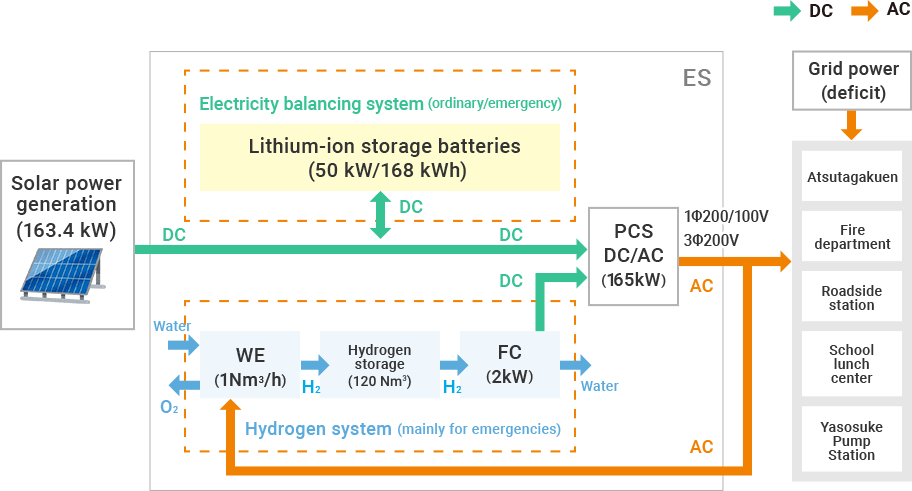

System diagram

Awards

  • NIKKEI Decarbonization Award 2021, Project Category Grand Prize
  • 2022 5th EcoPro Awards, Encouragement Award
  • FY2022 Energy Conservation and New Energy Award in Northern Districts (Hokkaido Bureau of Economy, Trade and Industry Long Commendation), Award of Excellence
